Klein Tools Cl120Vp Voltage-Protected Clamp Meter Test Kit

Description

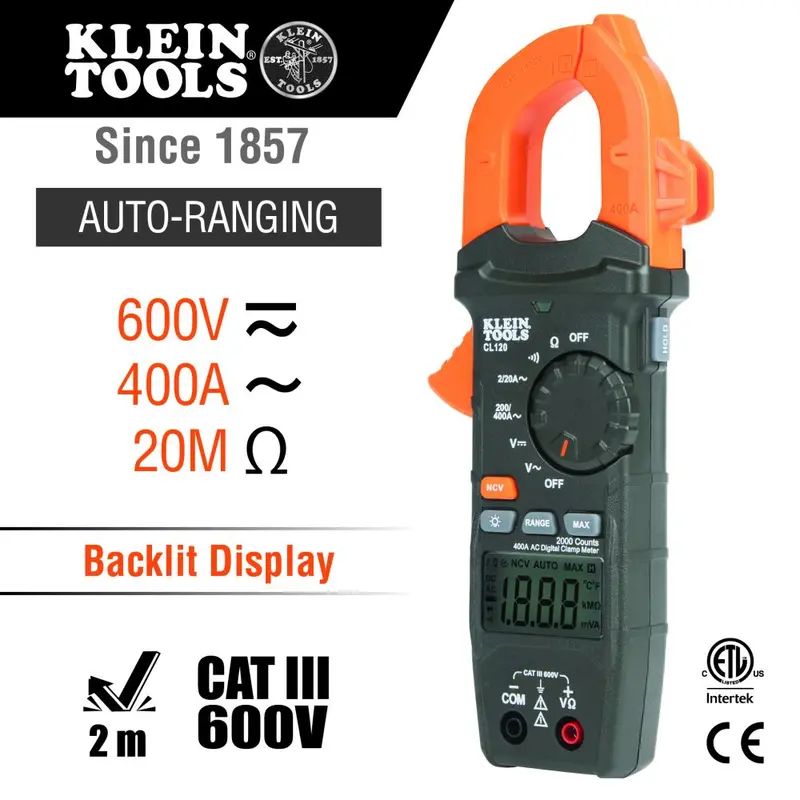

The CL120VP Electrical Test Kit from Klein Tools is designed with optimum reliability and safety in mind. Kit comes with 1 meter and 3 testers for a variety of applications and all stored within a convenient padded pouch. The CL120 is an AC auto-ranging 400 Amp AC/DC digital clamp meter. The RT210 Receptacle Tester detects common wiring problems for Standard and GFCI AC electrical outlets. The NCVT-3P is a dual range non-contact tester with flashlight for a broad variety of voltage applications from 12 to 1000V AC or 70 to 1000V AC. Test AC and DC voltage at four commonly used ranges with the ET40 Voltage Tester.

• CL120 Clamp Meter measure AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads
• Meter has backlit LCD for ease of viewing in low light and is CAT III 600V, Class 2 Double Insulated
• RT210 detects the most common wiring problems in standard and GFCI receptacles
• A convenient chart on RT210 helps determine wiring conditions: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
• NCVT-3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
• ET40 tests AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
• ET40 also tests DC voltages from 1.5V to greater than 17V to 24V at four common levels

Additional Information

Type:Auto Ranging ClampApplication:Testing and Measuring VoltageSpecial Features:Clamp Meter is Automatic Ranging for Measurement and has NCVT featureOverall Length:8.5″” (21.5 cm)Overall Height:1.5″” (3.8 cm)Overall Width:3.5″” (8.9 cm)Material:ABS/ElectronicsBatteries:CL120: 3 x AAA; NCVT3-P: 2 x AAA; ET40: 2 x AAAJaw Size:1.6″” (4.1 cm)Drop Protection:6.6″ (2 m)Display:2000 Count Backlit LCDFunctions:AC Current, NCVT, AC/DC Voltage, Resistance and ContinuityVoltage:600V AC/DCPollution Degree:2Standard:CATIII 600V, Class 2, Double Insulation Safety Rating, CE CertifiedIncluded:CL120 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required BatteriesWeight:11 oz (314 g)
